Parent Layer: 2K

Name: Waterlines_2K

Display Field: gnis_name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: River and Stream lines that represent flowlines and cartographic features such as stream centerlines and river banks.

Service Item Id: 1bf52f17e8fe441db600121673ef6feb

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Effective Min Scale: 2500

Effective Max Scale: 1951

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Extent:

XMin: -1.1211880442725953E7
YMin: 3389301.4064264395
XMax: -1.0921110584088096E7
YMax: 3595776.7516576545
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [199, 228, 237, 255]
Width: 3
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [109, 175, 194, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: baseline
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 9
Font Family: Verdana
Font Style: italic
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: false
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: N/A

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• gnis_id ( type: esriFieldTypeString, alias: Geographic Names Information System ID, length: 10 )
• gnis_name ( type: esriFieldTypeString, alias: Name from Geographic Names Information System, length: 65 )
• lengthkm ( type: esriFieldTypeDouble, alias: Length in Kilometers )
• reachcode ( type: esriFieldTypeString, alias: Reach, length: 14 )
• ftype ( type: esriFieldTypeString, alias: Feature Type, length: 30 )
• fcode ( type: esriFieldTypeInteger, alias: Feature Code )
• visibilityfilter ( type: esriFieldTypeInteger, alias: Visibility Filter )
• nhdplusid ( type: esriFieldTypeDouble, alias: NHDPlus ID )
• streamleve ( type: esriFieldTypeSmallInteger, alias: Stream Level )
• streamorde ( type: esriFieldTypeSmallInteger, alias: Stream Order )
• areasqkm ( type: esriFieldTypeDouble, alias: Catchment Area in Square Kilometers )
• totdasqkm ( type: esriFieldTypeDouble, alias: Total Drainage Area in Square Kilometers )
• maxelevraw ( type: esriFieldTypeDouble, alias: Maximum Elevation )
• minelevraw ( type: esriFieldTypeDouble, alias: Minimum Elevation )
• slope ( type: esriFieldTypeDouble, alias: Slope )
• slopelenkm ( type: esriFieldTypeDouble, alias: Slope Length in Kilometers )
• qema ( type: esriFieldTypeDouble, alias: Gage Adjusted Mean Annual Flow )
• vema ( type: esriFieldTypeDouble, alias: Gage Adjusted Mean Annual Velocity )
• qgadjma ( type: esriFieldTypeDouble, alias: Gage Flow Adjustment )
• gageadjma ( type: esriFieldTypeSmallInteger, alias: Is Mean Annual Flow Gage Adjusted )
• gageqma ( type: esriFieldTypeDouble, alias: Mean Annual Gage Flow )
• PopupTitle ( type: esriFieldTypeString, alias: Pop-up Title, length: 75 )
• PopupSubtitle ( type: esriFieldTypeString, alias: Pop-up Subtitle, length: 75 )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )

Supported Operations:   Generate Renderer   Return Updates

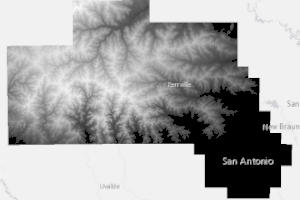

  Iteminfo   Thumbnail   Metadata
